How-To: Use License Policies with ScanCode Workbench

ScanCode Workbench now has basic support for tracking and viewing license policies that have been applied to a ScanCode Toolkit scan. In order for things to work, your initial scan must be run with the --license-policy option. For more information, see the License Policy Plugin section of the ScanCode Toolkit ReadTheDocs.

The basics

While the License Policy Plugin can be customized with any number of custom fields and values, ScanCode Workbench currently only supports a pre-defined set of policy labels.

license_key

label

scancode_license_key

Approved License

scancode_license_key

Prohibited License

scancode_license_key

Recommended License

scancode_license_key

Restricted License

This means in order to take advantage of ScanCode Workbench’s policy features, your license-policy.yml needs to have license_key and label fields at the very least.

Additionally, in order to take advantage of policy visualizations, label values must be one of the 4 above values: Approved License, Prohibited License, Recommended License or Restricted License. Later versions of ScanCode Workbench will eventually evolve to support more dynamic policy values.

Here is a simple example of a valid license-policy.yml file:

license_policies:
-   license_key: apache-2.0
    label: Approved License
-   license_key: apache-1.1
    label: Prohibited License
-   license_key: lgpl-2.1-plus
    label: Recommended License
-   license_key: cpl-1.0
    label: Restricted License

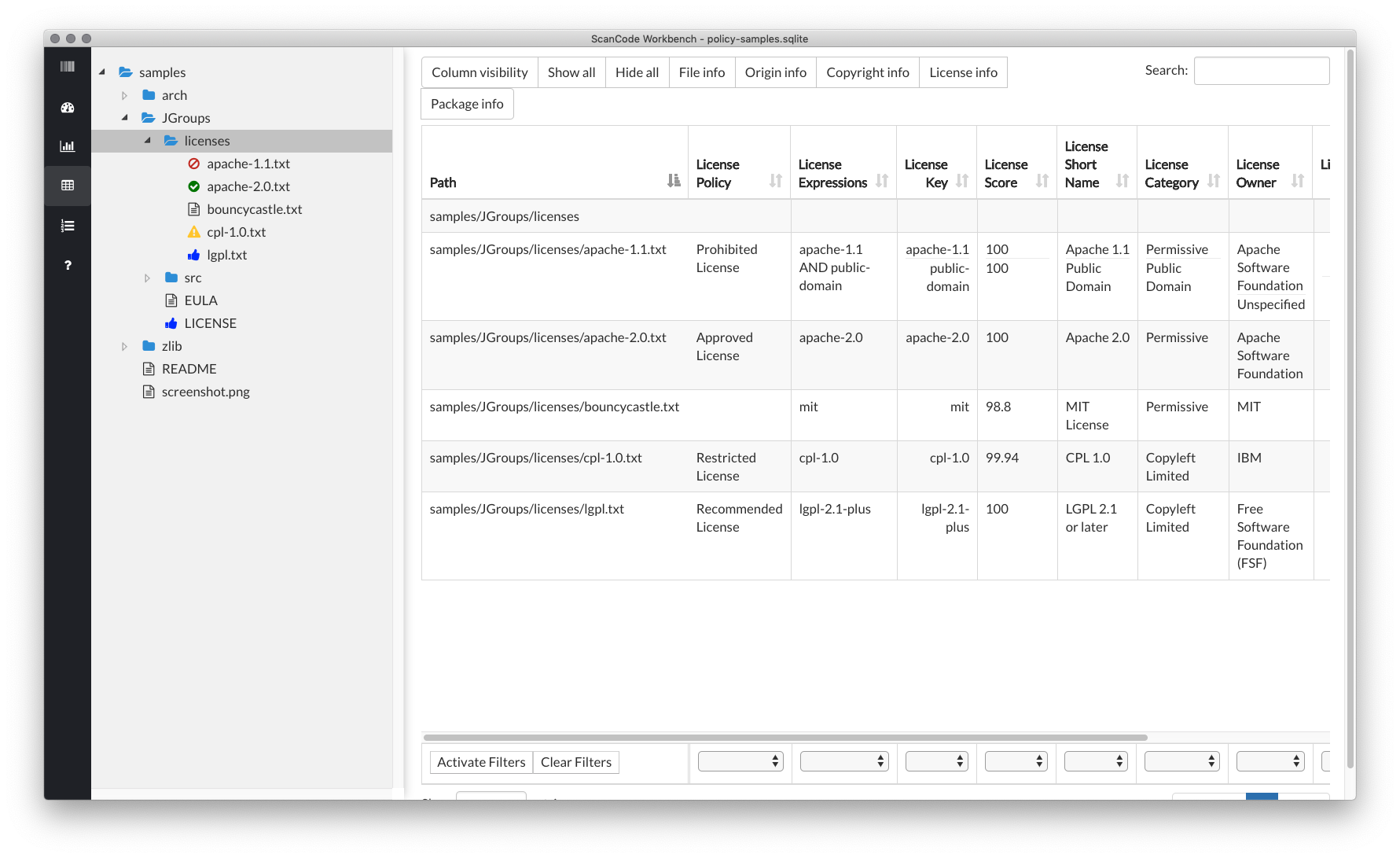

After running a scan with that particular license-policy.yml file, viewing the scan in ScanCode Workbench will look like the following:

../../_images/policy-view.png

As you can see, files which have detected licenses that fall under a particular policy will be shown in the JSTree view with specific icons. This way, you are able to quickly see what files fall under a specific policy.

Additionally, policy details can be found in the scan data view in their own column: License Policy. This column has been added to both the “Origin” column set and “License info” column set.
